PRO PERFORMANCE, SIMPLE TO USE.

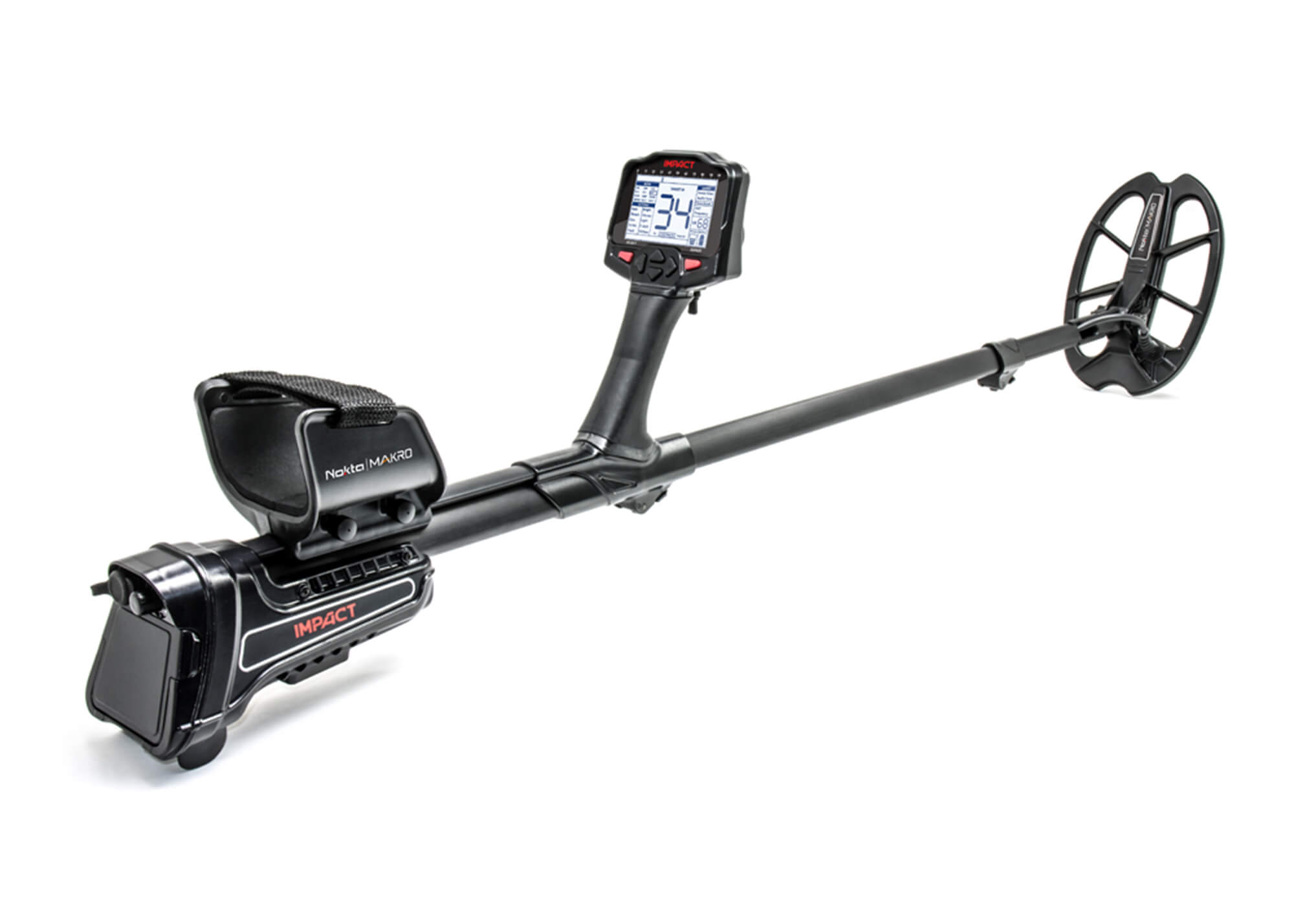

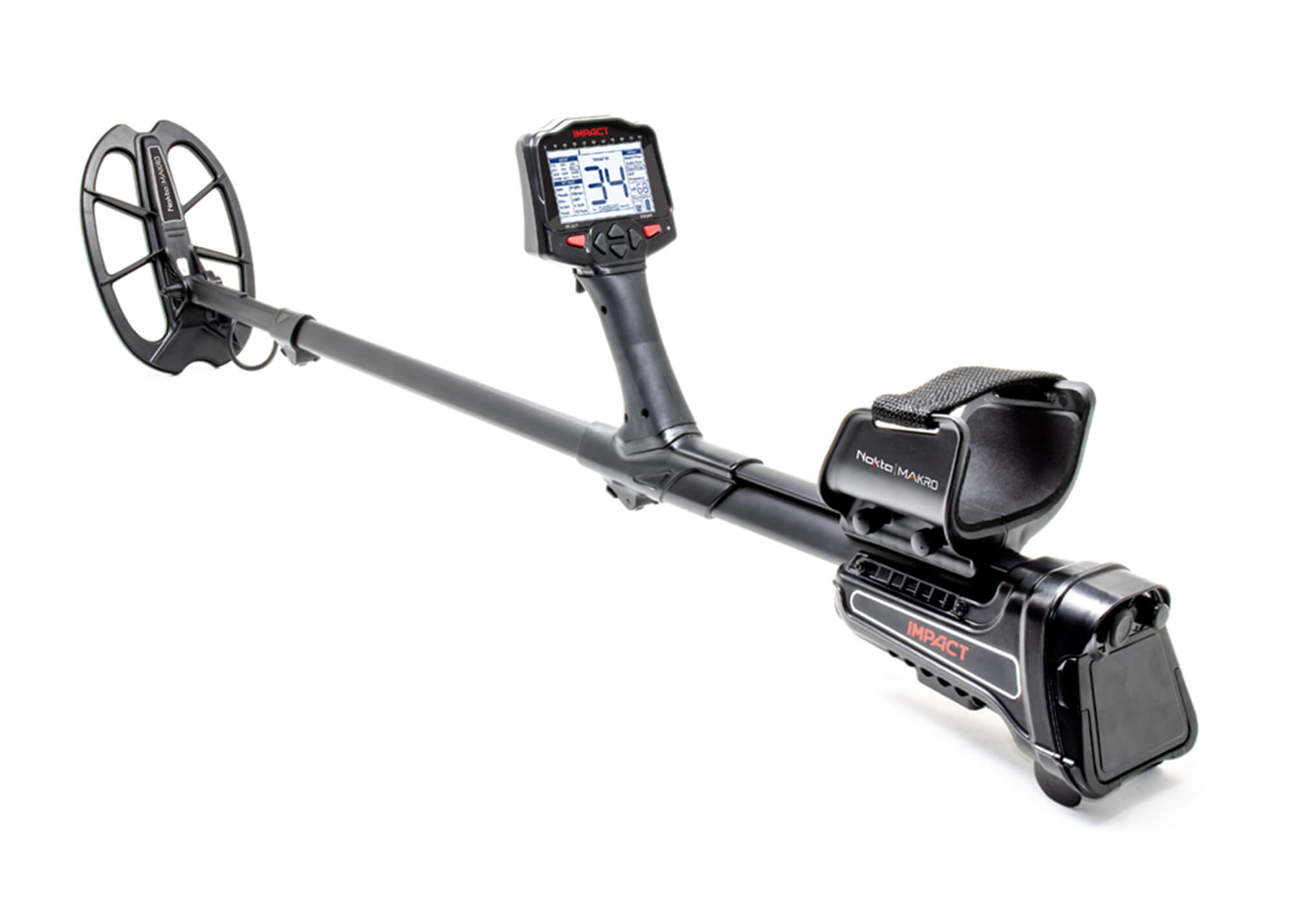

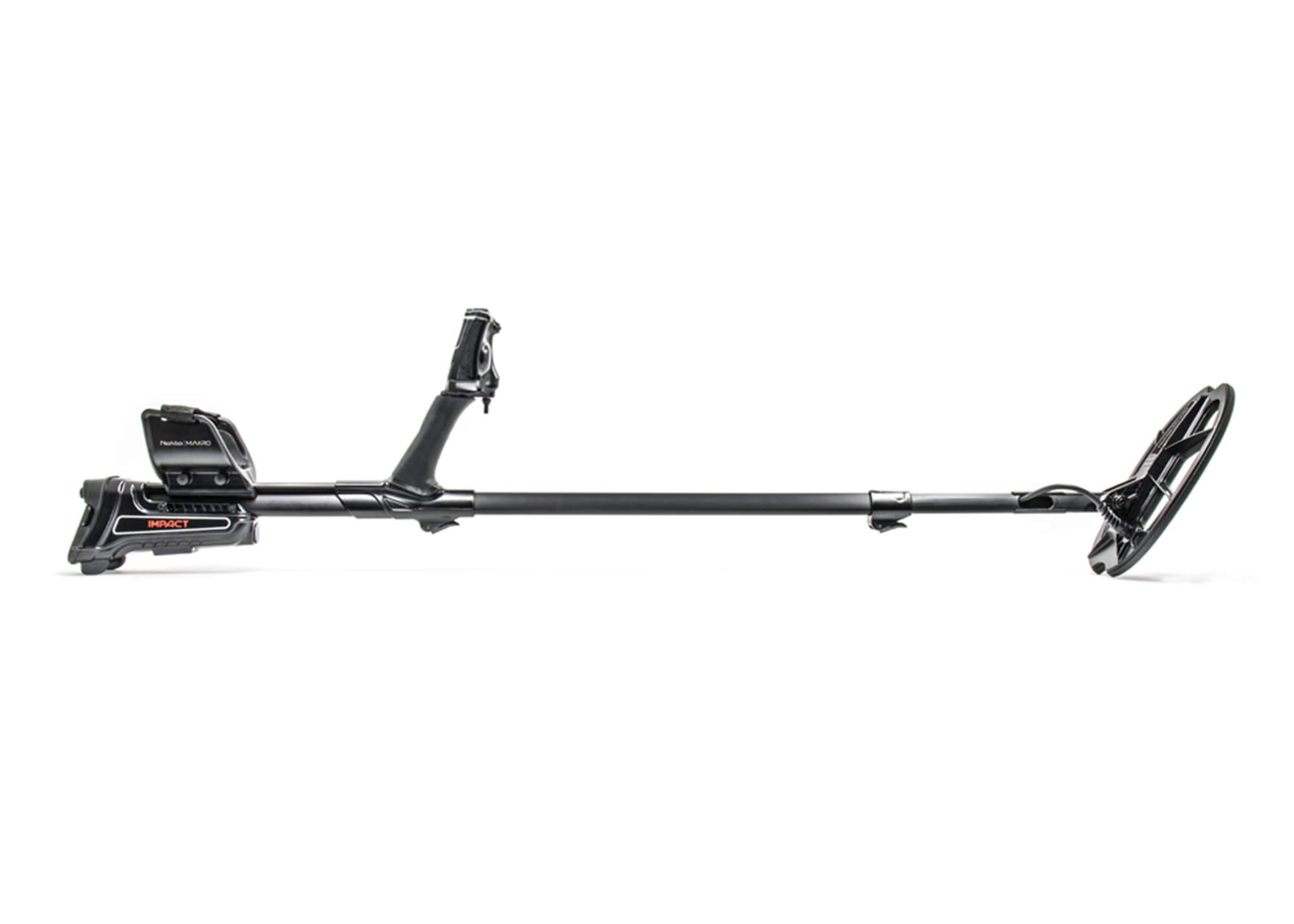

Uncover deep hidden treasures with the new IMPACT Multi Frequency Metal Detector by Nokta! The IMPACT combines multiple detectors in one and utilizes cutting edge technology, enabling a unique yet easy-to-use detector experience for new to experienced detectorists.

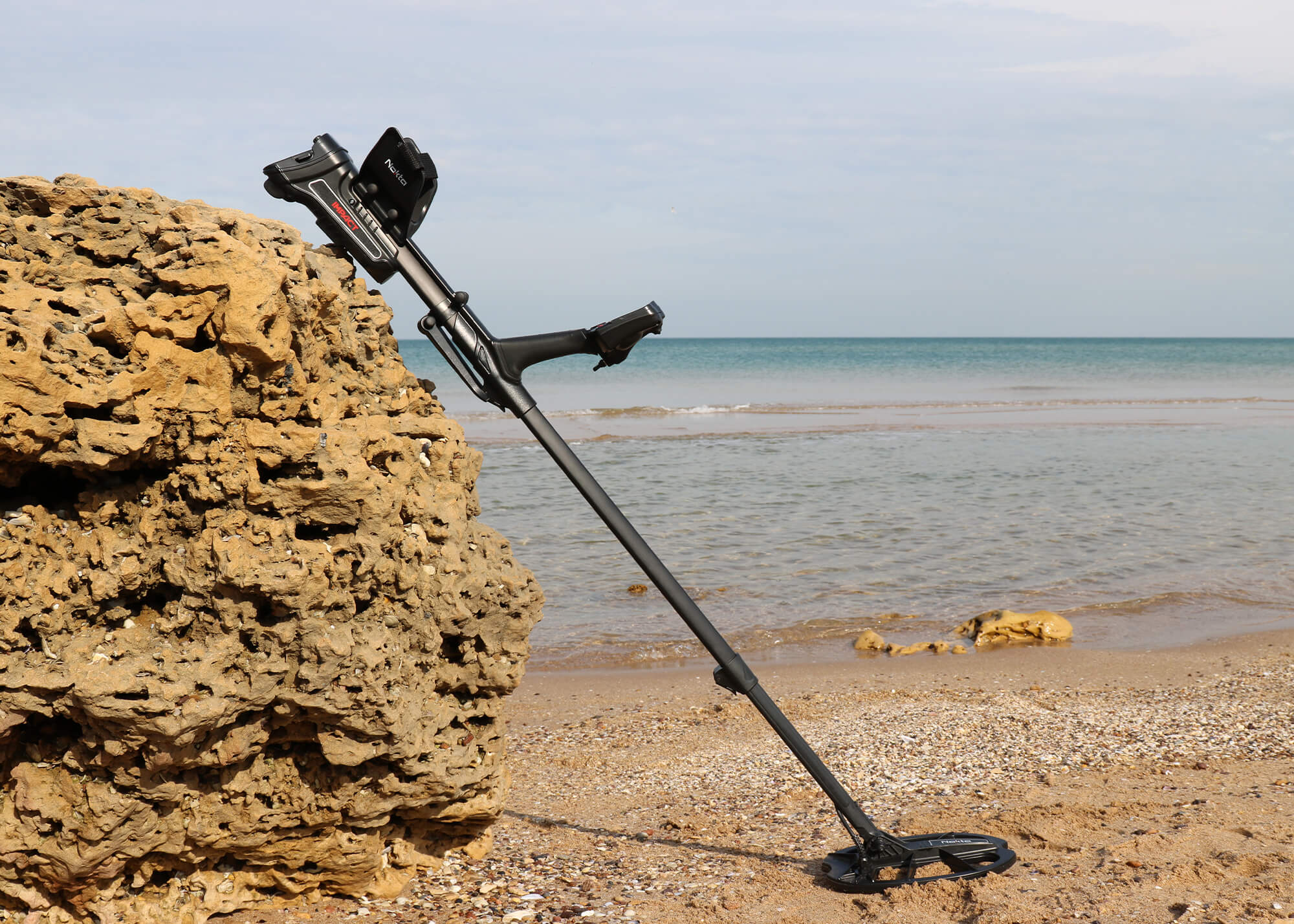

The IMPACT boasts (12) search modes designed to hunt out different targets such as coins, relics and deep treasure caches. It also operates extremely well in different terrains including (but not limited to) wet beach sand and parks, allowing you to search without any further adjustment if you wish.
Featuring (3) powerful operating frequencies, online firmware update (via PC USB) capability and robust design. If you are looking for depth and advanced discrimination ability, the IMPACT – just like its name – will make a great impact on your future detecting finds.
Advanced Disc. & Unmasking Ability
High Performance and Unmatched Depth
Online Firmware Updates
Optional 2.4 GHz Wireless Headphones
12 Search Modes
3 Selectable Target ID Depth
Vibration
LED Flashlight
1- System Box
2- Waterproof DD Search Coil 28×18 cm / 11″ x 7″ (IM28) & Cover
3- Waterproof DD Search Coil 19×10 cm / 7.5″ x 4″ (IM19) & Cover
4- Headphones
5- Extra Lower Shaft
6- USB Data Cable
7- USB Charger & 4 x AA Rechargeable Batteries
8- User Manual

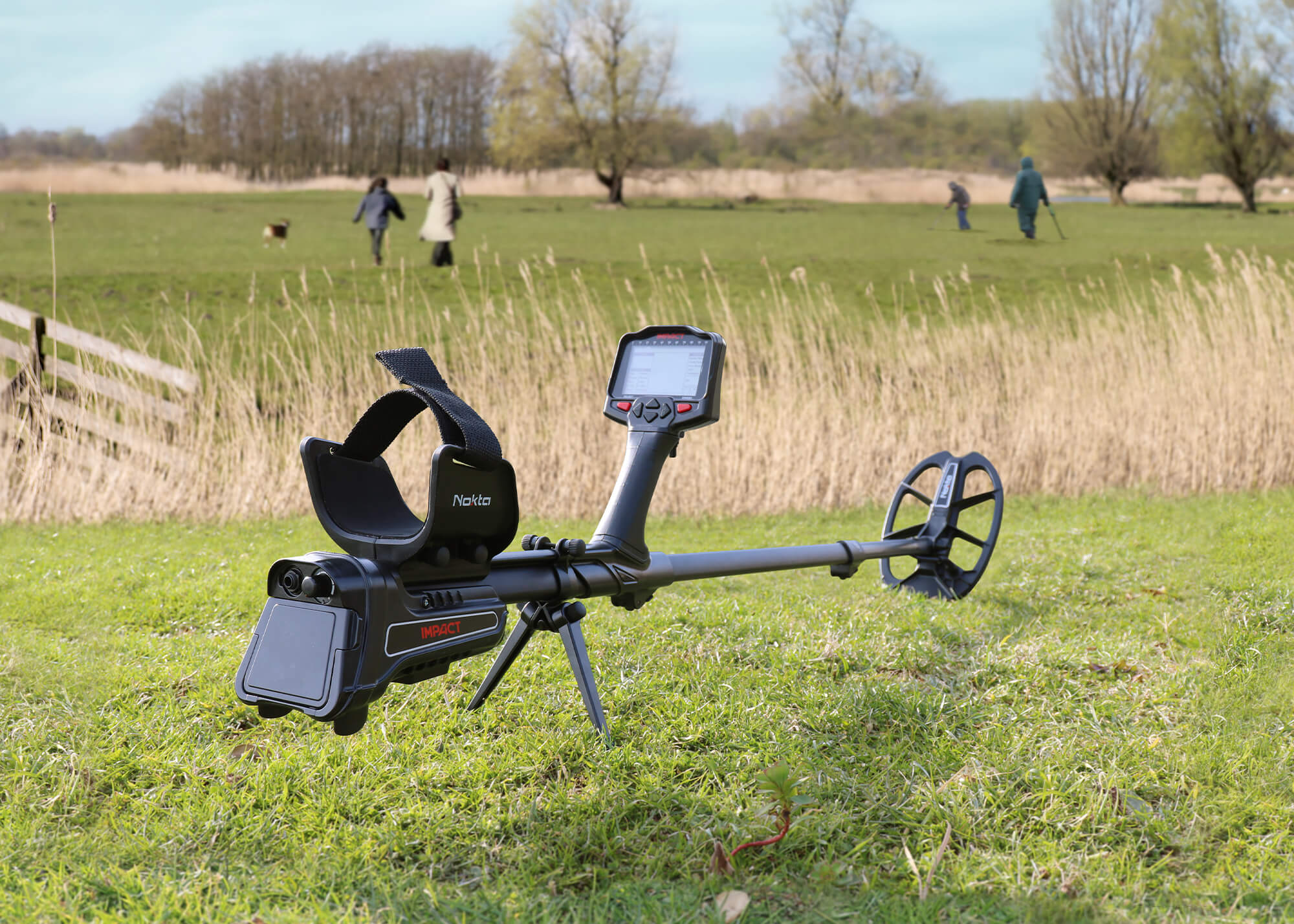

9- Stand
10- Protective Covers
11- Carrying Bag
Brochures
| Impact Metal Detector Brochure (EN) | View | Download |
| Impact Metal Detector Brochure (ES) | View | Download |
| Impact Metal Detector Brochure (FR) | View | Download |
| Impact Metal Detector Brochure (IT) | View | Download |
| Impact Metal Detector Brochure (DE) | View | Download |
| Impact Metal Detector Brochure (RU) | View | Download |
| Impact Metal Detector Brochure (TR) | View | Download |
Manuals
| Impact Metal Detector User Manual (EN) | View | Download |
| Impact Metal Detector User Manual (ES) | View | Download |
| Impact Metal Detector User Manual (FR) | View | Download |
| Impact Metal Detector User Manual (IT) | View | Download |
| Impact Metal Detector User Manual (DE) | View | Download |
| Impact Metal Detector User Manual (NL) | View | Download |
| Impact Metal Detector User Manual (RU) | View | Download |
| Impact Metal Detector User Manual (TR) | View | Download |
Stand Setup
Important!
Operating systems: Windows XP (with SP3), Vista, Windows 7, 8, 10 or 11.
After software update, all settings will revert to factory defaults.
Be sure to make a note of your saved settings prior to the update.
The latest update includes all previous updates.
Software Update (03.11.2017) : System Software V1.16 / LCD Software V1.14
Updates Made : With this software version, the number of WiFi channels on your detector has been increased and an ”off’’ position has been added (shown with ‘’oF’’ on the screen).
The new RED EDITION of the 2.4GHz wireless headphones will ONLY work with IMPACT Software version R2_V1.16_V1.14 or later versions.
When you are not using the wireless headphones, keeping the WiFi connection of your detector off is recommended.
Important!
If you do not have the RED EDITION of the 2.4GHz wireless headphones but an older version and would like to upgrade your detector with this software version, please check the WiFi channel of your detector first and make sure that it is NOT set to channel 4 or 5 but to one of the channels between 0-3 before uploading the software to your detector!
Software Update (27.07.2017) : System Software V1.14 / LCD Software V1.12
Updates Made : Audio Tone feature has been activated in DI4 and VLX2 modes.
How to use it: If you want to change the frequency of the 4th tone in DI4 and VLX2 modes, while Non-Fe is selected, press the select button once. The frame will disappear and the audio frequency of the 4th tone will appear on the screen. Use the (+) or the (-)button to change it.
Software Update (02.05.2017) : System Software V1.13 / LCD Software V1.11
Updates Made : Individual frequency shift values have been assigned for each frequency (5kHz/14kHz/20kHz) and the frequency shift feature has been improved overall.
Initial Version : System Software V1.13 / LCD Software V1.11
Software Update Video Tutorial
| Operating Principle | VLF |
| Operating Frequency | 5kHz - 14kHz - 20kHz |
| Audio Frequencies | 150Hz - 700Hz adjustable |
| Search Modes | 12 (2 Non-motion, 2 All Metal, 8 Discrimination) |
| Iron Volume | Yes |
| Tone Break | Yes |
| Notch Filter | Yes |
| Ground Balance | Automatic / Manual / Tracking |
| Pinpoint | Yes |
| Frequency Shift | Yes |
| Vibration | Yes |
| Gain Setting | 01 - 99 |
| Target ID | 00 - 99 |
| Search Coil | Waterproof DD Search Coil 28x18 cm / 11" x 7" (IM28) |

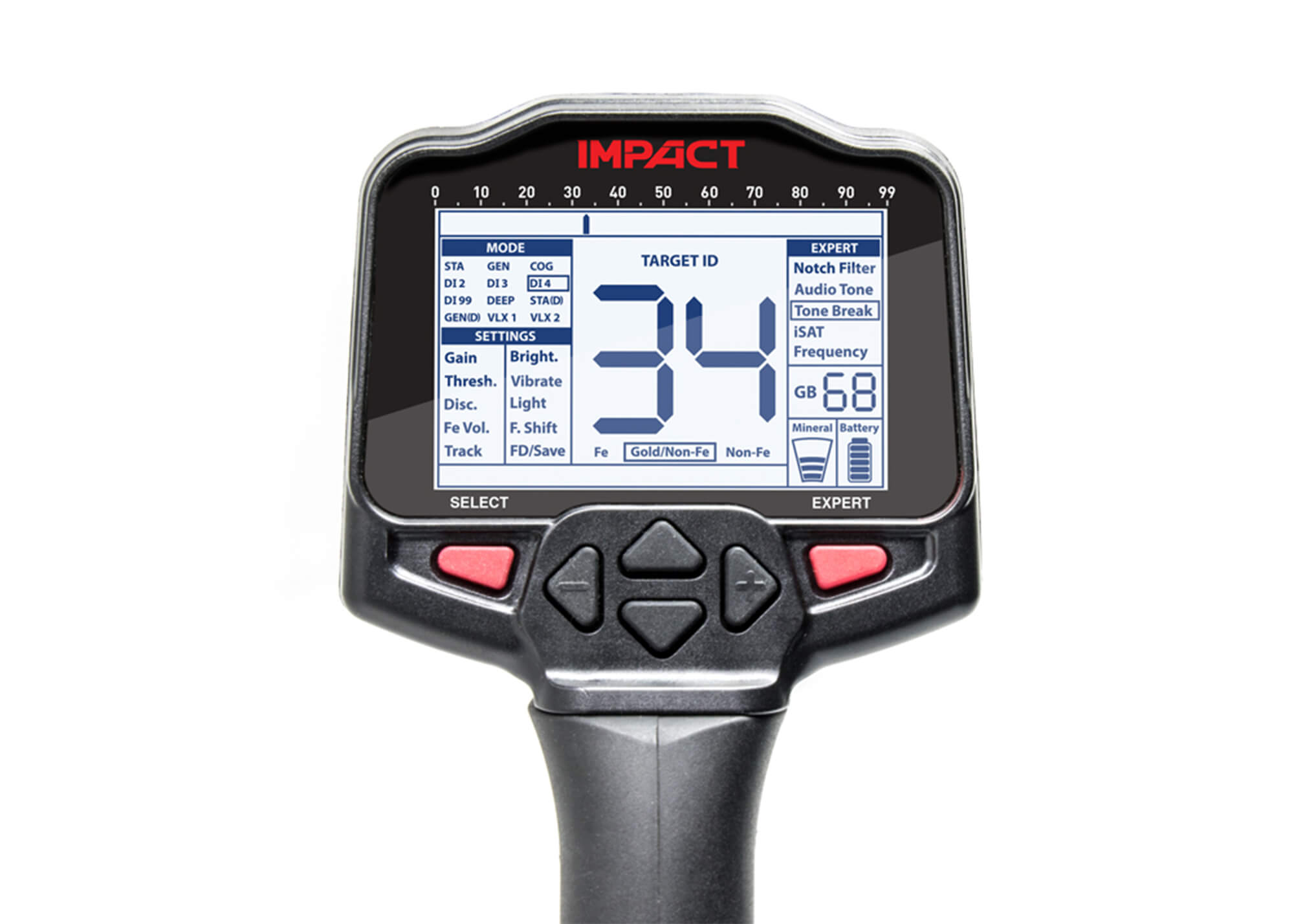

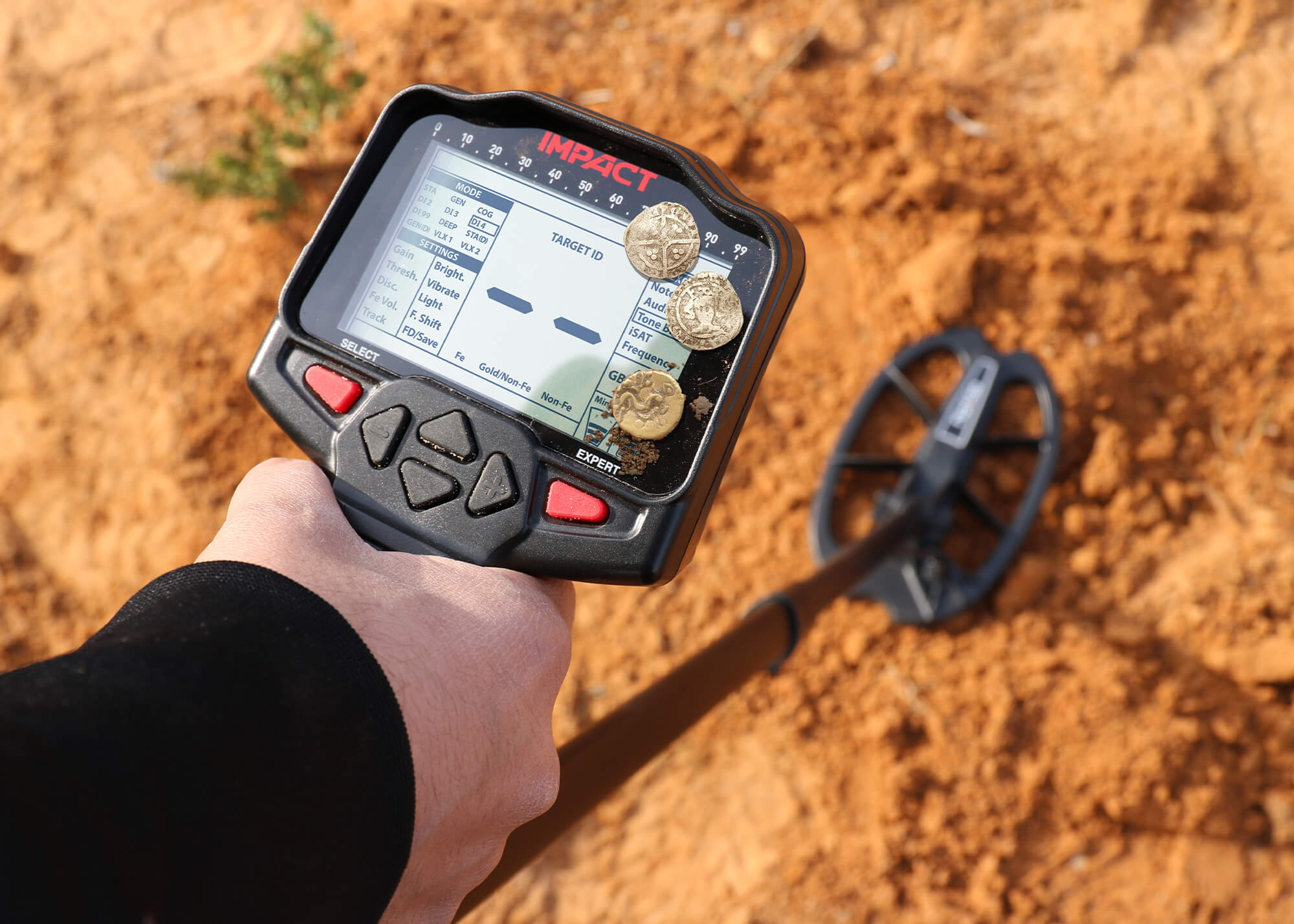

| Display | Custom LCD |
| Backlight | Yes |
| LED Flashlight | Yes |
| Weight | 1.8 kg (4 lbs.) including search coil and batteries |
| Length | 107 cm - 143 cm (42" - 56") adjustable |
| Battery | 4 x AA Alkaline |
| Warranty | 2 Years |
Nokta Detectors reserves the right to change the design, specifications or accessories without notice and without any obligation or liability whatsoever.
