Magnetar 9000 Software Update

UPDATE

VERY IMPORTANT! Once the update is complete, don’t forget to perform a FACTORY RESET on your MAGNETAR 9000.

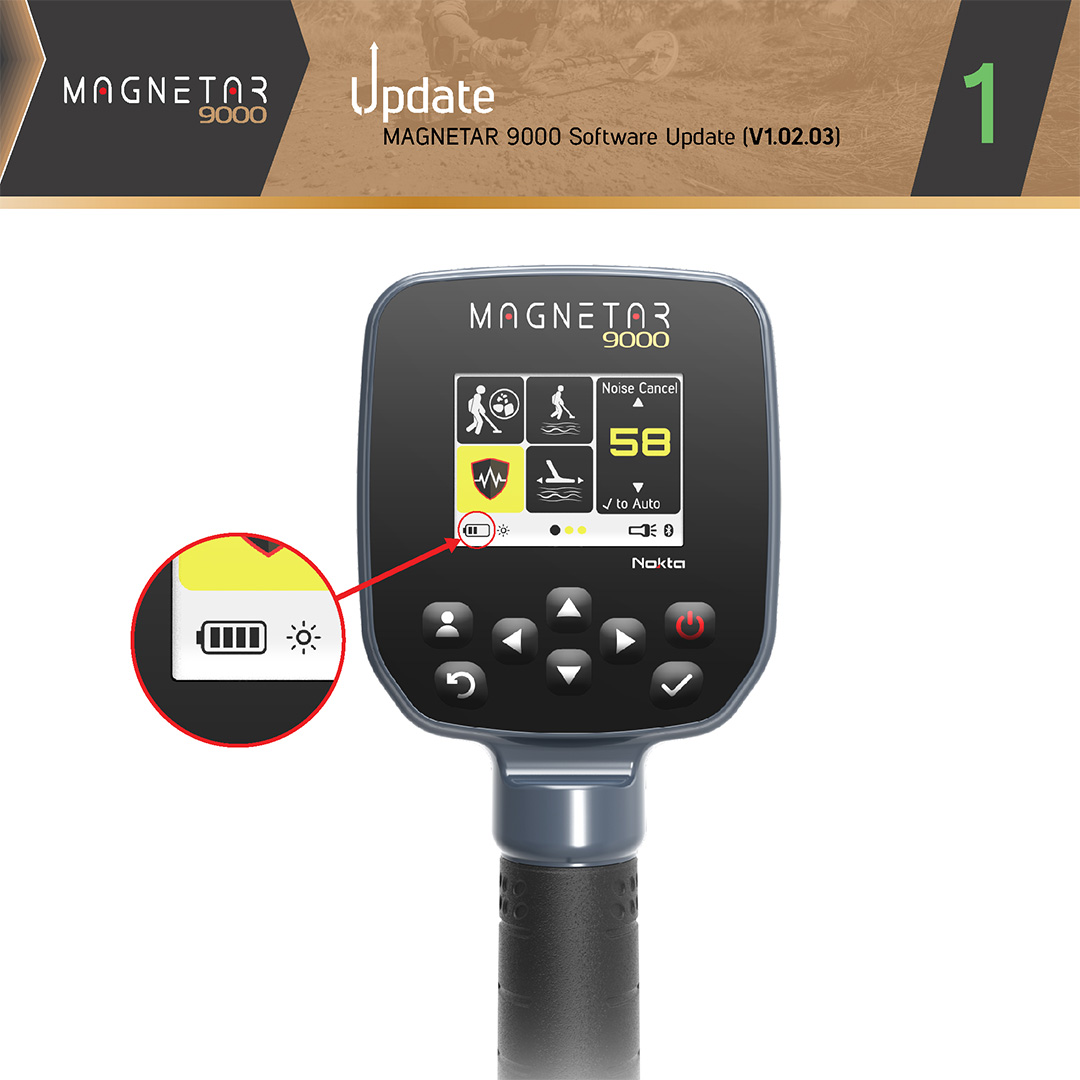

  1. Make sure the device battery is at least 50% charged before starting the update.

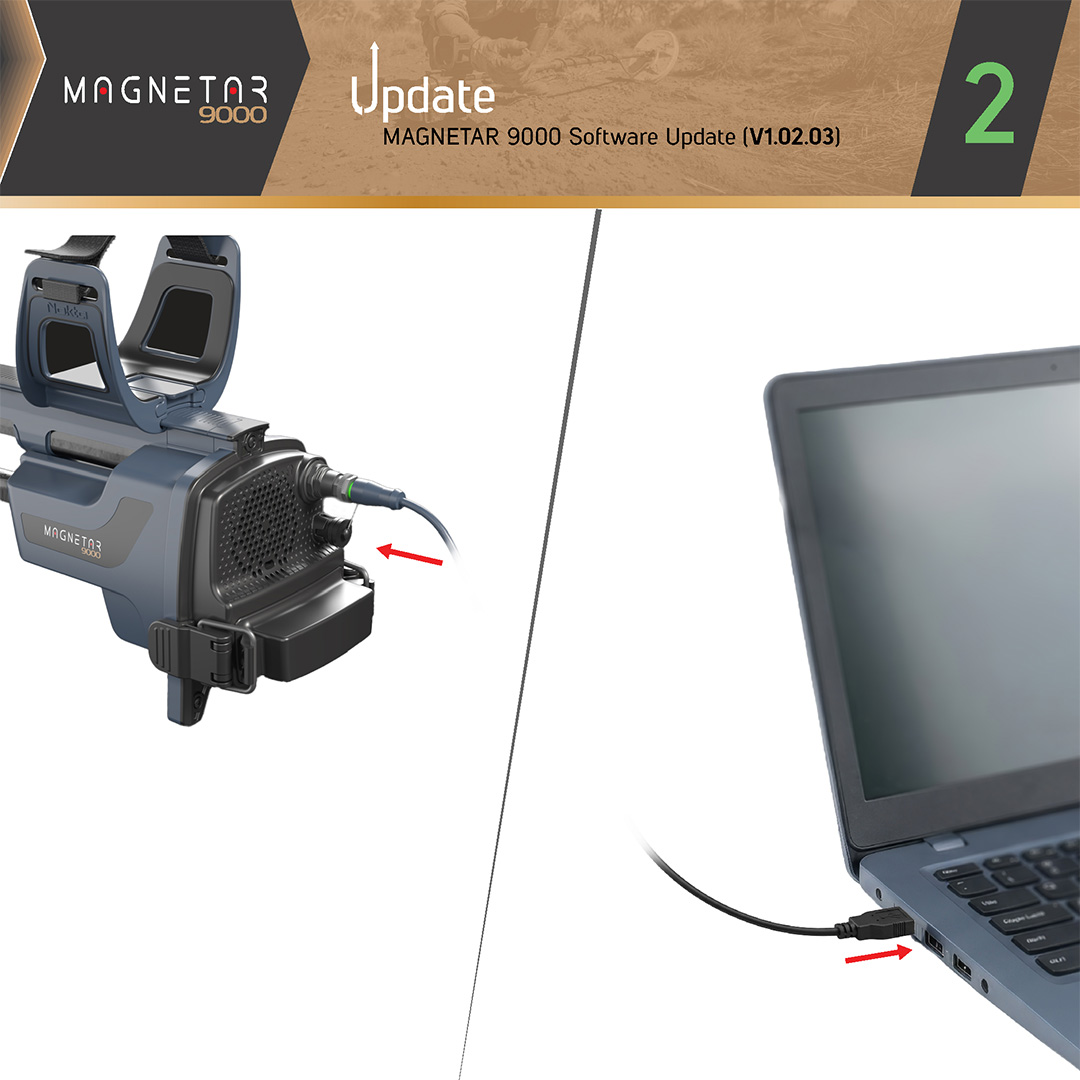

  2. Connect one end of the USB cable to the device and the other end to your computer.

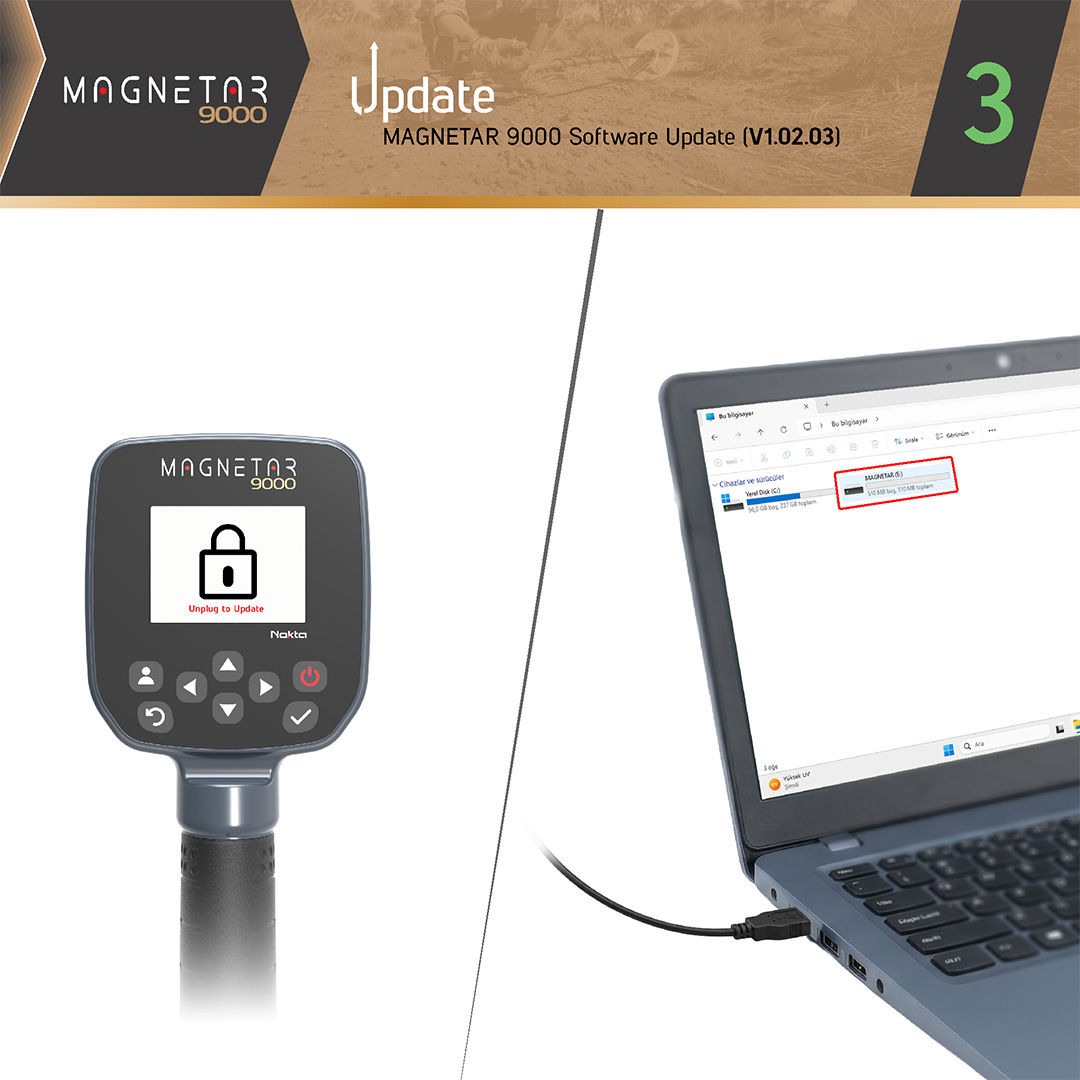

  3. A lock icon will appear on the device screen. The device will show up on your computer as a removable USB drive named MAGNETAR.

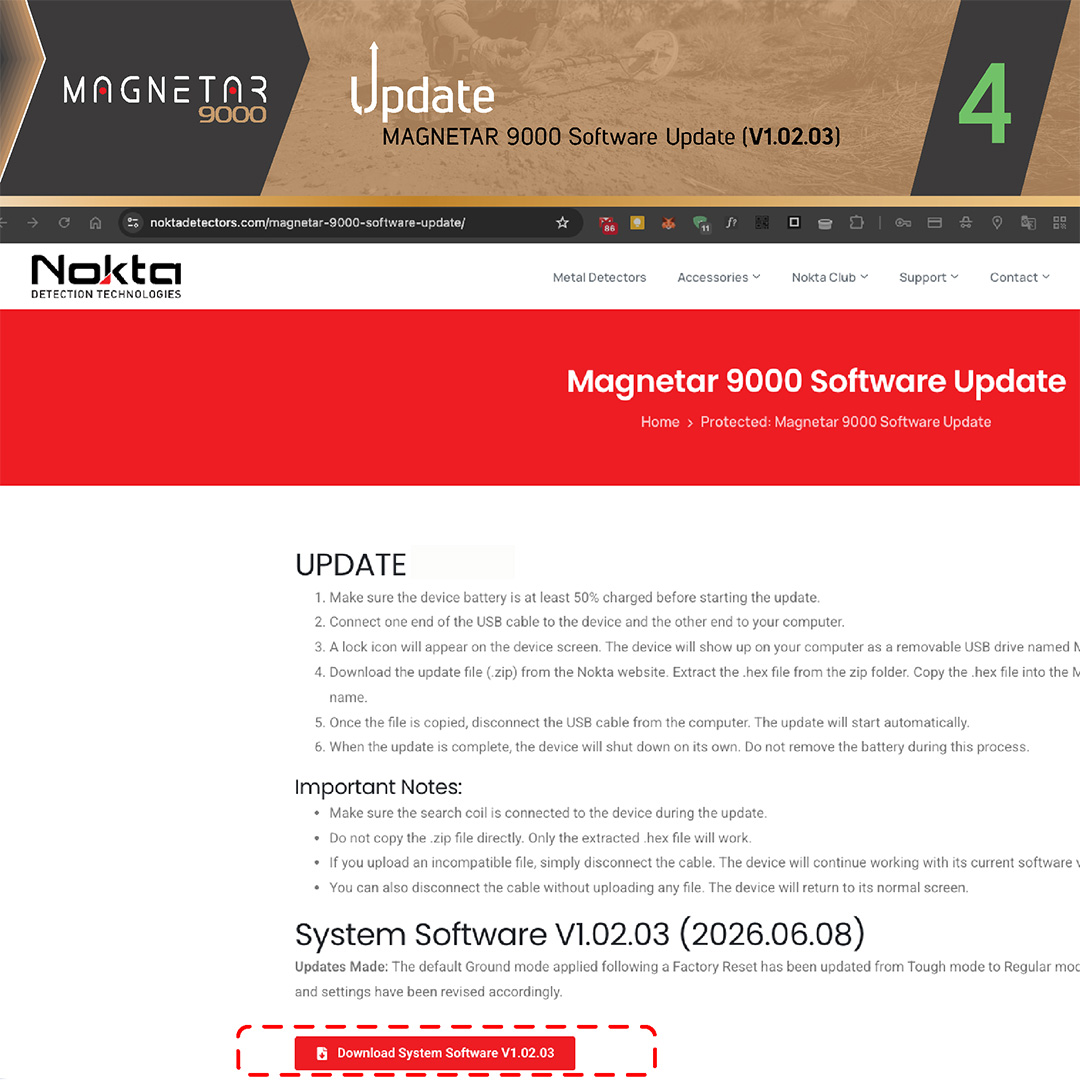

  4. Download the update file (.zip) from the Nokta website. Extract the .hex file from the zip folder. Copy the .hex file into the MAGNETAR drive. Do not change the file name.

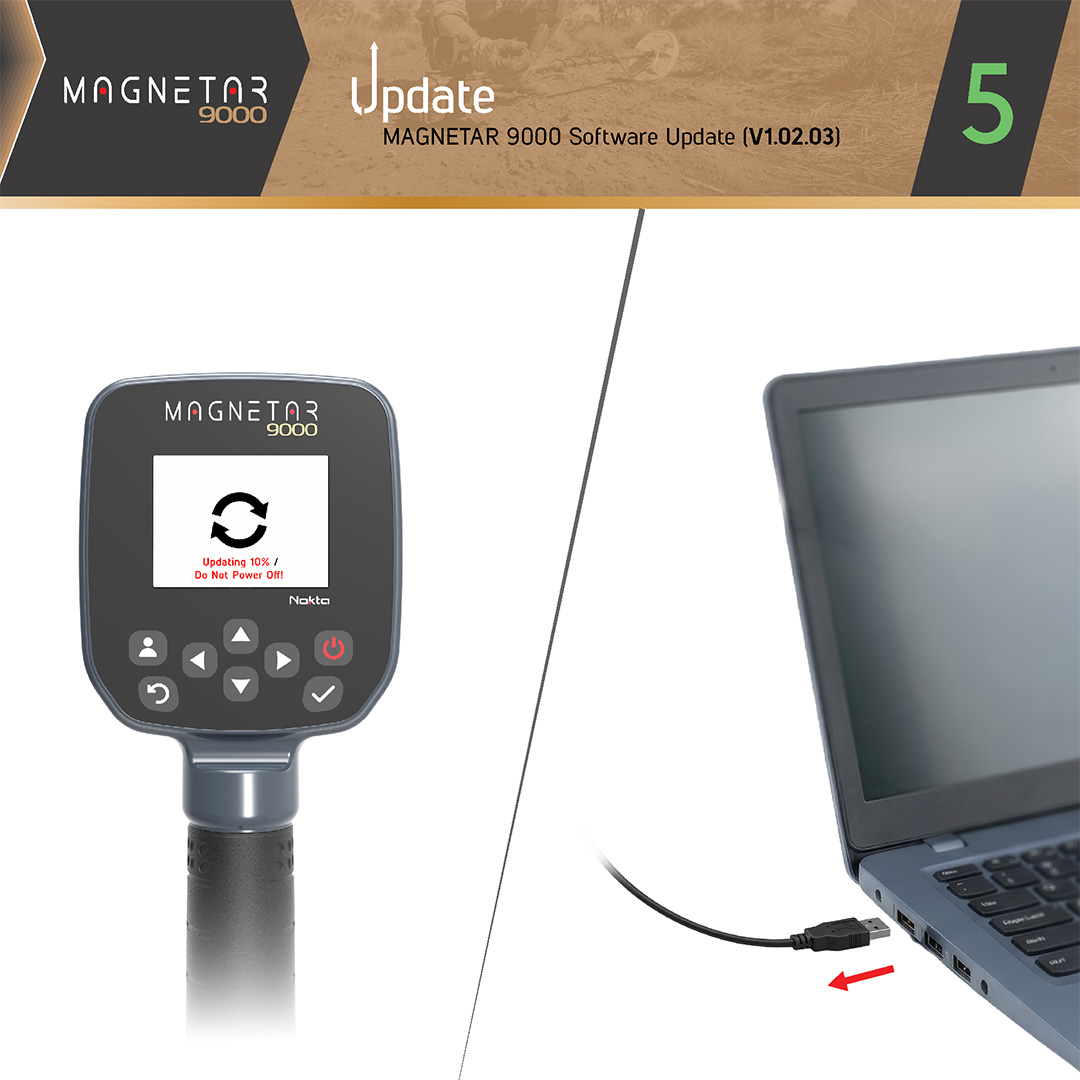

  5. Once the file is copied, disconnect the USB cable from the computer. The update will start automatically.

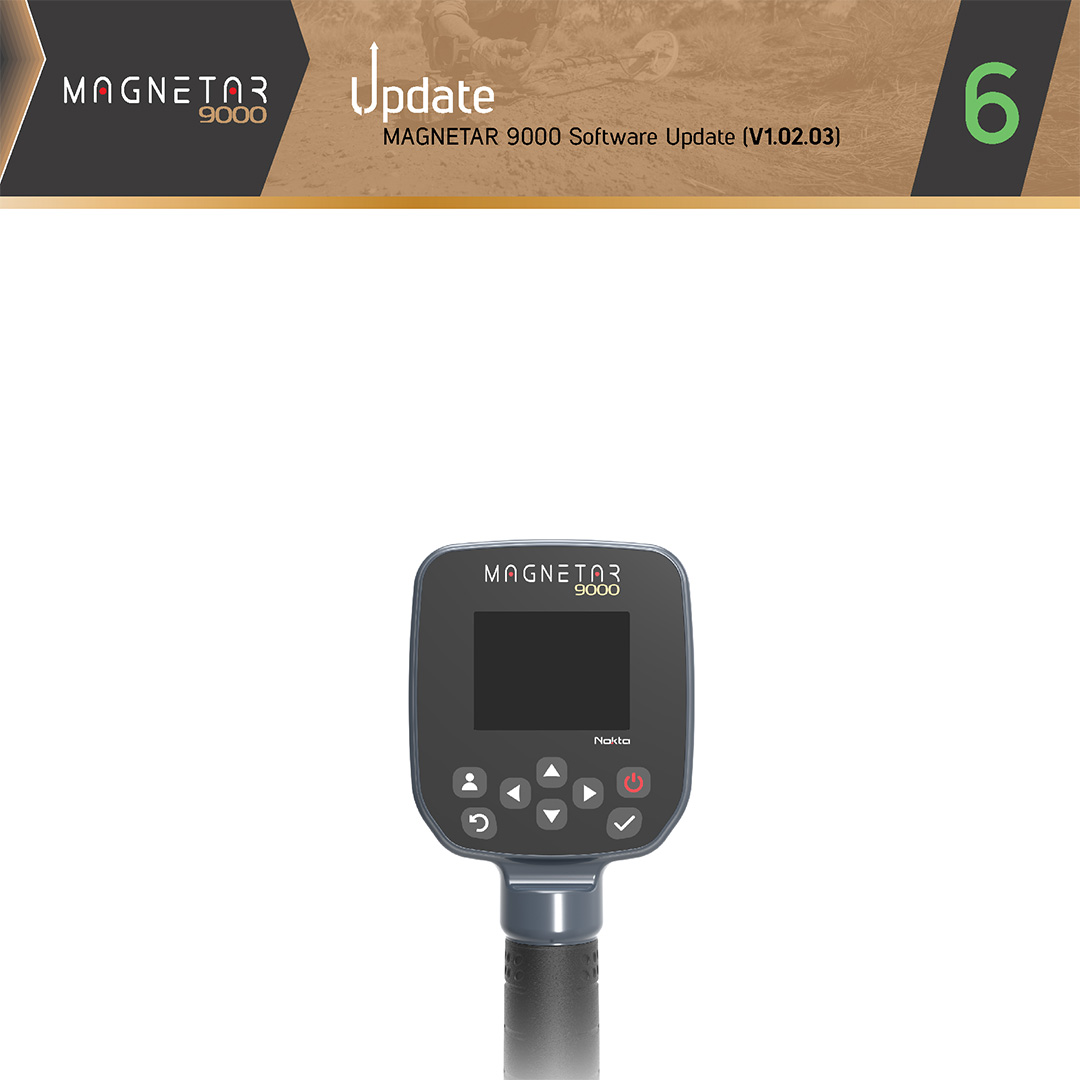

  6. When the update is complete, the device will shut down on its own. Do not remove the battery during this process.
  7. VERY IMPORTANT! Once the update is complete, don’t forget to perform a FACTORY RESET on your MAGNETAR 9000.
Important Notes:
  • Make sure the search coil is connected to the device during the update.
  • Do not copy the .zip file directly. Only the extracted .hex file will work.
  • If you upload an incompatible file, simply disconnect the cable. The device will continue working with its current software version.
  • You can also disconnect the cable without uploading any file. The device will return to its normal screen.

System Software V3.07.05 (2026.11.13)

Updates Mades:

1. Overall Threshold Stability Improved

Improvements to the threshold algorithm provide a more balanced and stable background audio response.

2. Changes to Audio Filter Settings

  • Off: Threshold fluctuations have been reduced to provide a more stable background audio response. This setting is particularly recommended for challenging ground conditions, especially in highly mineralized soils.
  • Low: The audio characteristics of the previous software version’s Off setting have been moved to Low for users who prefer the original threshold behavior. The detector’s default startup setting has also been changed from Off to Low.
  • High: No changes have been made to this setting.

With the new software, the MAGNETAR 9000’s Audio Filter allows you to adjust the background audio response to suit ground conditions and your listening preference, and operates as follows:

  • Off: Provides a stable background audio response with reduced threshold fluctuations. Recommended for challenging ground conditions, especially in highly mineralized soils.
  • Low — Factory Default:
    Allows more threshold variation to remain audible. Suitable for users who prefer a more active background audio response.
  • High: Applies strong filtering to minimize ground-related fluctuations and provide smoother background audio. Small or weak target signals may become less noticeable.

3. Stabilizer Setting Renamed

The Medium level of the Stabilizer setting has been renamed to High to avoid confusion.

4. New Level 21 Added to Target Volume

This new level amplifies weak signals from very small gold targets, particularly in low-mineralization ground conditions, making them easier to hear and detect.

Level 21 is displayed in red on the detector’s screen.

Using this level also changes the characteristics of the threshold (background audio). Users will better understand these differences as they gain experience with this setting in the field.

VERY IMPORTANT! Once the update is complete, don’t forget to perform a FACTORY RESET on your MAGNETAR 9000.

System Software V3.04.04 (2026.09.22)

Updates Mades:

  • Ground balancing and stability have been enhanced for more precise ground compensation, smoother operation, and improved performance across challenging and highly mineralized soils.
  • Minor bugs have been fixed.

VERY IMPORTANT! Once the update is complete, don’t forget to perform a FACTORY RESET on your MAGNETAR 9000.
